How to change multiple HSL values at once in Visio

When creating a set of colors that work well together you often want to change the saturation and luminosity levels on all of the colors at once. There are some amazing color tools out there, but up to now I've not found any that lets me do this en-masse adjustment.

So I thought I'd try and create a utility tool in Visio that lets you do this.

An HSL utility

When creating this tool I had two goals:

• to be able to adjust and view the saturation and luminosity values of multiple shapes in one action
• and, to be able to copy a list of those color values as a list to the clipboard

The first requirement can be easily met by standard ShapeSheet logic, but the second requires some code.

Bearing in mind that not everyone will be able to run macro code, I've created two files: a template (.vstx) without code and an accompanying stencil (.vssm) where the code lives.

• HSL_Color.vstx
• HSL_Color.vssm

The stencil file is digitally signed from visualsignals ltd and if any changes made to the stencil this will invalidate the signature.

HSL

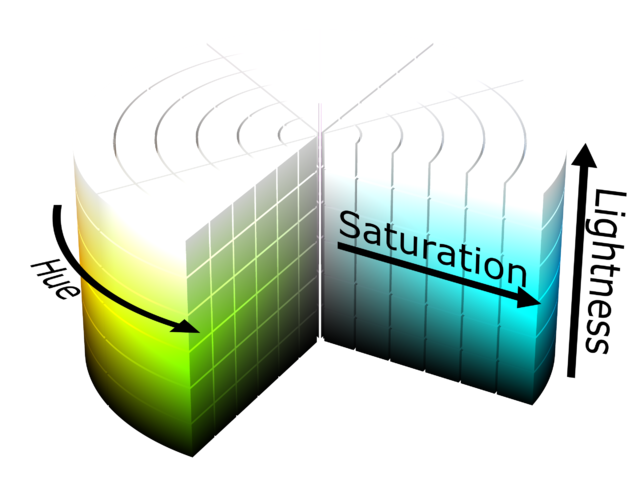

If you're not familiar with it, HSL is an alternative color model to the more common RGB. RGB can be thought of as a cubic arrangement, with each dimension representing a range for each component. HSL, on the other hand, represents colors in a cylindrical model, which means that each component (hue, saturation and luminosity) can set as a single value.

You can read more about HSL on Wikipedia.

The solution

The solution has two masters:

• a Color circle shape for each color instance

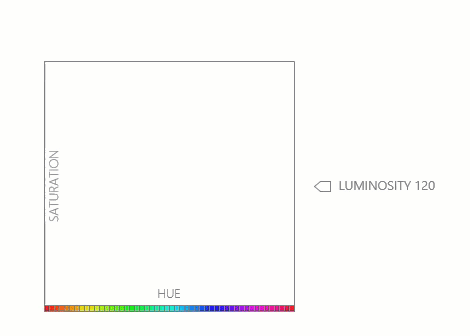

• and a Container shape to visualualize the Hue and Saturation components + a slider to control the Luminosity of all colors on the page

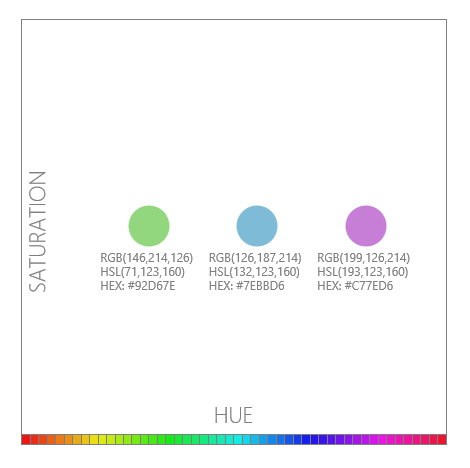

When dropping Color instances onto the page the resulting HSL values are determined by each shape's vertical (Saturation) and horizontal (Hue) position.

As these are standard Visio shapes you can drag select, Ctrl+Click and Ctrl+A as you like and then move the selection on the page.

Each of the shapes reference a page level Shape Data cell to retrieve their Luminosity value and this can be set by either directly editing the Shape Data window or by dragging the yellow control handle on the Container shape, which is visible when the shape is selected.

Show color values

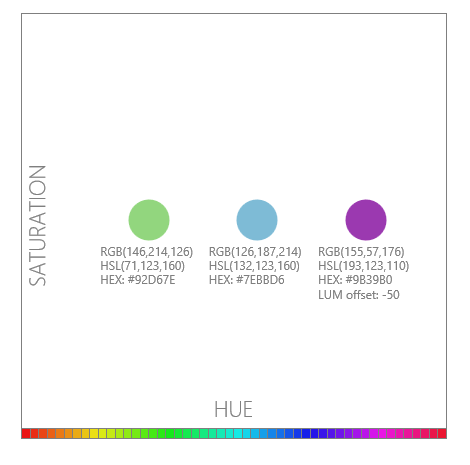

On page right-click you can choose whether to display color values which, if turned on, will display the RGB, HSL and HEX values.

Instance luminosity

Although you control the global luminosity via the page, as described above, you might also want to add an offset to individual shapes and you can do this via a Shape Data row named Luminosity Offset. This defaults to 0 but can take a negative or positive integer and the shape will add this to the global value in order to arrive at its own calculated result.

If Show color values is true then the offset will be displayed along side the other information.

Color Values Shape Report

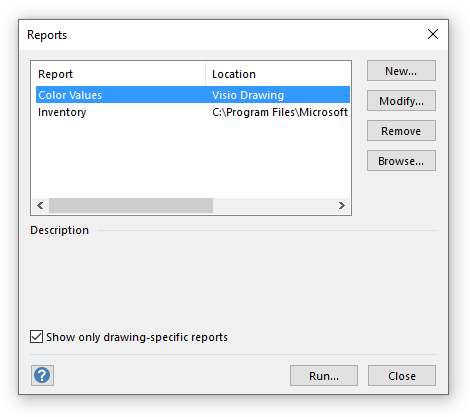

The file contains a report definition that will report all colors in RGB, HSL and HEX formats, which you can run from Review / Shape Reports.

It's really there for those who are not able to run the macros version and as an alternative to the Copy color values (see below).

Macro enhancements

The code version of the document includes a few additional features:

Reset all luminosity offsets

If you've applied local luminosity offsets to a number of Color shapes and want to reset them then you can do this via the Reset all local luminosity offsets page right-click menu item.

Copy Color values to clipboard

You can right-click on the page and select "Copy RGB values". This harvests the RGB string cell from each Color shape, concatenates this into a list and then copies the resulting string to the clipboard. So, for example, if you had three colors on the page you'd find something like this in the clipboard:

RGB(238,168,111)|RGB(113,236,122)|RGB(112,190,237)

You're free to change the parameters of the corresponding CALLTHIS function in the page ShapeSheet, where the last three arguments are: the target cell name, the color delimiter (pipe in the above example) and a boolean that determines whether to retrieve the local formula (with local component separator) or universal which will always be a comma.

On the Color shape you'll find string cells cells:

• User.RGBStr
• User.HSLStr
• User.HEXStr

Save Colors

Another right-click feature on the page is the ability to save the current set of Color shapes to the document, which you can then 'reload' at a later date.

Individual named Palettes are stored in the Document's ShapeSheet and so are saved with the document.

Colors are stored in the palette as RGB values and then translated back to HSL when they're dropped back onto the page.

There are a number of options for converting from RGB to HSL and back again. I looked at a number of options for doing this:

• Converting sRGB Colors to HSL - W3C
• HSL to RGB color conversion - Stack Overflow
• RGB to HSL conversion - Stack Overflow

In the end I went for the Win32 api which has a ColorRGBToHSL function, which does very nicely.

Drop and Delete Palettes

Now that you're storing palettes you need some way to manage them and so there is an further menu item named 'Manage palettes...'.

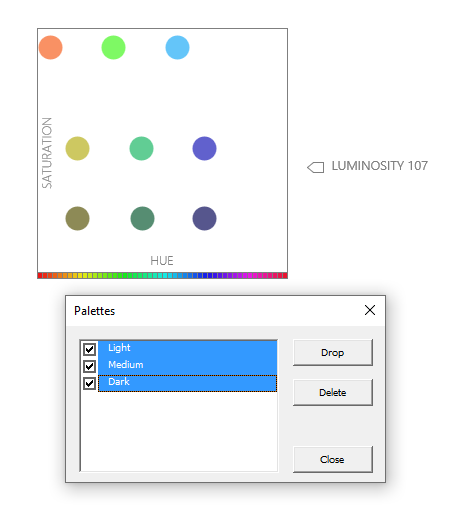

This surfaces a form which allows you to select one or more palettes and either drop all of the colors in each palette or, delete the selected palettes.

Note - If the luminosity level on the page has changed since the colors were stored a corresponding offset will be applied on drop.

Override Ctrl+A

This utility is specialized enough that I decided to catch the select all (Ctrl+A) event. Most of the time I just want to select the Color shapes and not the Container shape. However as I needed the Container to be selectable, in order to move the luminosity slider, I couldn't just lock that layer. Instead the event is caught and quickly deselects the Container resulting in a Colors only selection.

Final notes
